ProMIL Wheels Military Main Stretcher

Name: ProMIL Wheels
Brand: ProMIL
SKU: 36480
Availability: InStock

ProMIL Wheels Military Main Stretcher

Contact us about this product

Log in or create an account to order this product.

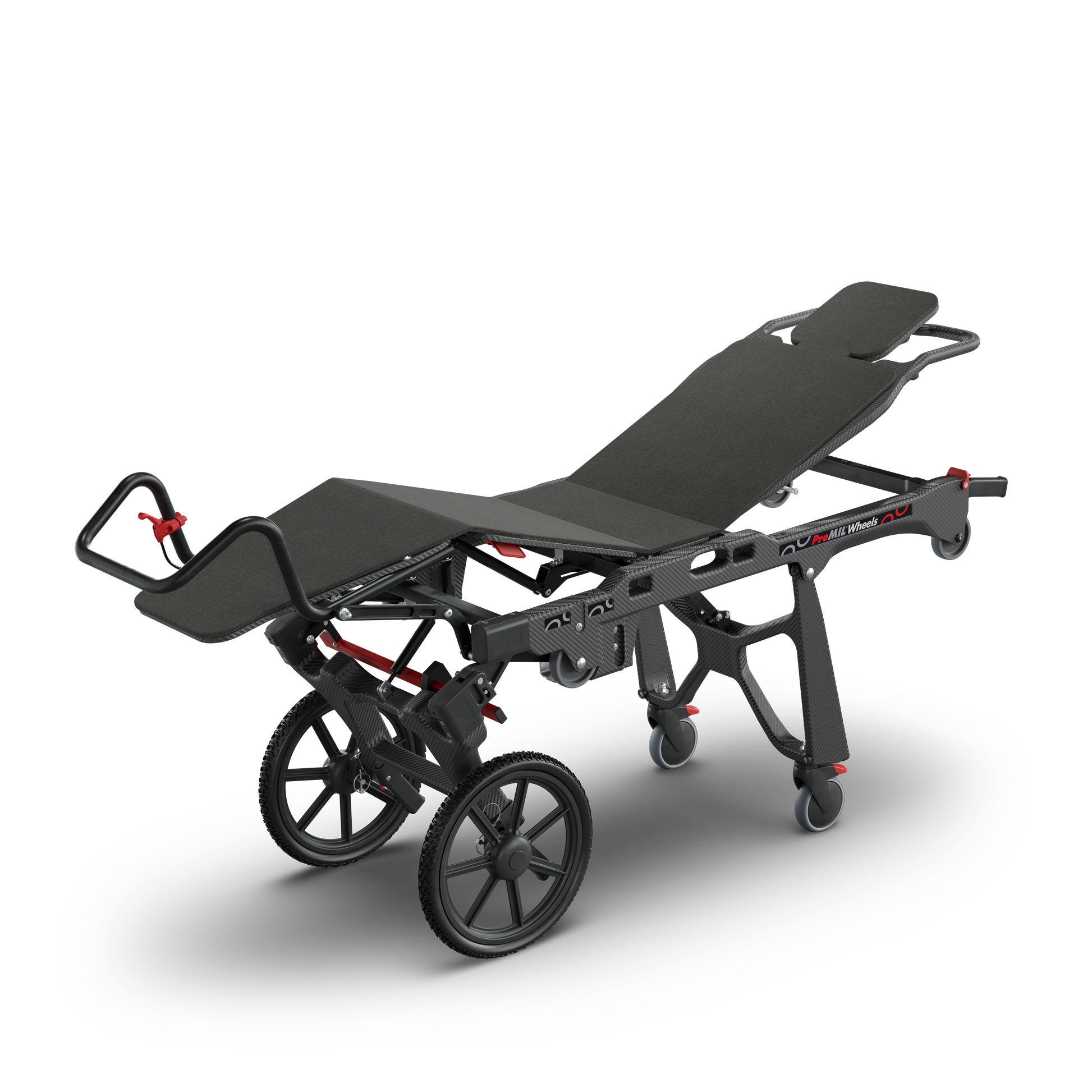

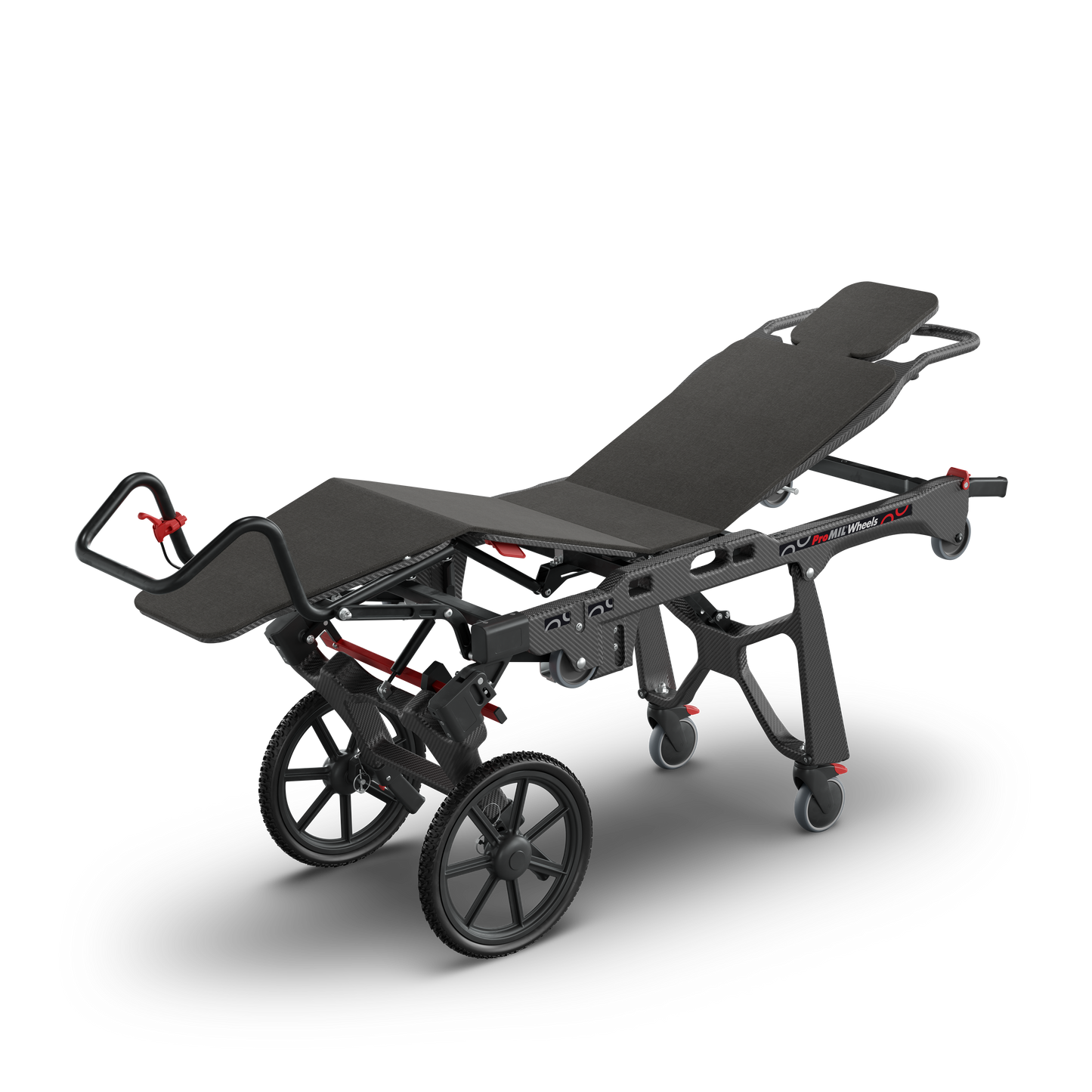

ProMIL Wheels brings civilian-level care and ergonomics to the harsh conditions of the battlefield. Designed to address the challenges of modern battlefield evacuation, this stretcher reduces the personnel required for patient evacuation by 50%, needing only 1-2 operators compared to the 4 required for traditional field stretchers.

Its carbon fiber structure makes it lighter than any other main stretcher, allowing it to be carried by a single person.

Battle proven in current conflicts and refined based on feedback from Ukraine, ProMIL Wheels offers multiple modes of operation for various scenarios. Key advantages include advanced body position adjustment capabilities that support treatment tasks and enable prolonged field casualty care.

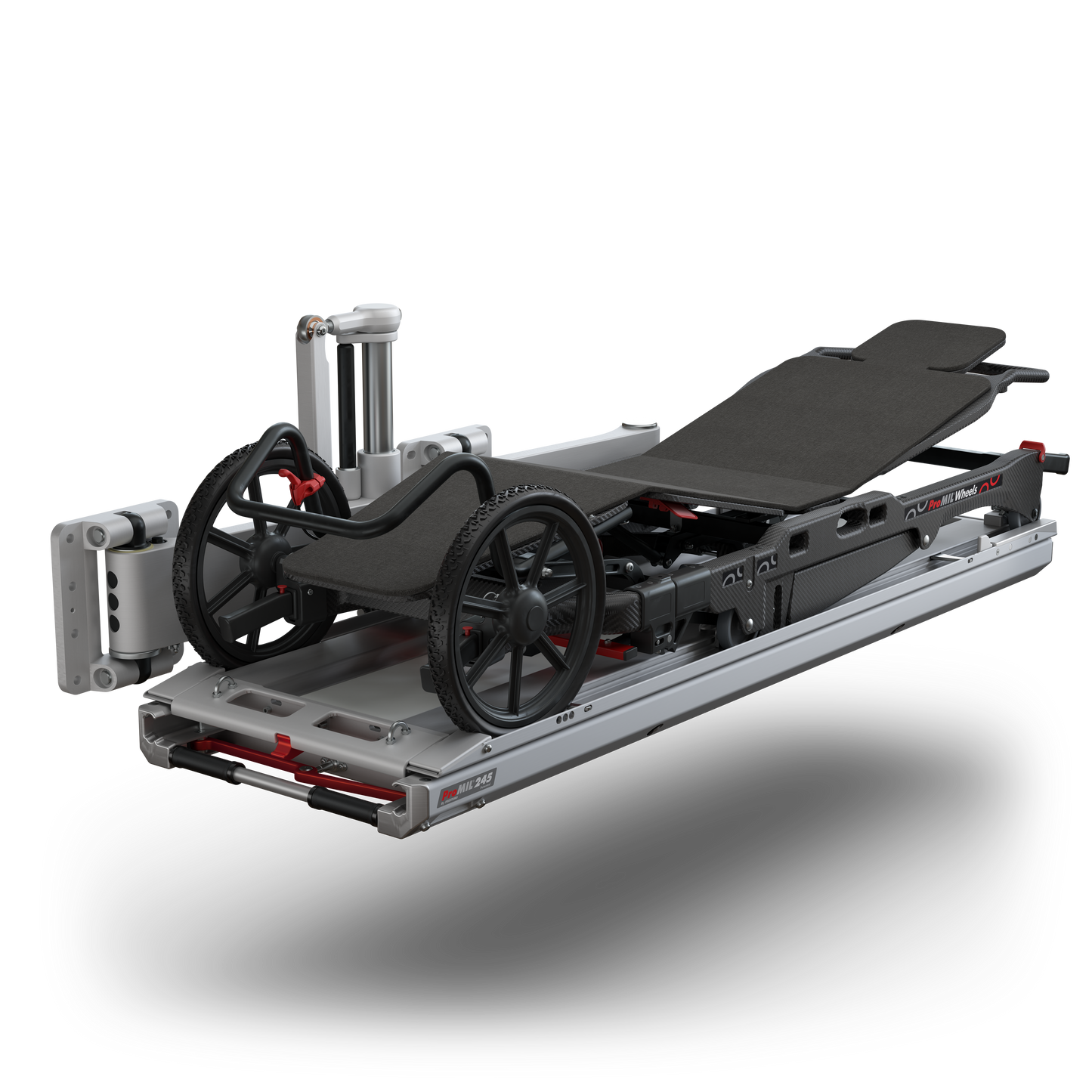

ProMIL Wheels is compatible with both military and civilian stretcher loading systems from both ProMIL and Ergomy series.

Product features

Compatibility: Fits ProMIL Wheels locking interface and optionally STANAG 2040 (AMedP-2.1) platforms using an adapter.
Lightweight Design: Carbon fiber composite structure makes it easy to transport, even by one person.
Payload Capacity: Supports a maximum payload of 180 kg for patient and equipment.
Ergonomic Adjustments: Adjustable back support and leg raise for various treatment positions.
Large Wheels: Equipped with massive Ø400mm wheels for easy movement over rough terrain.
Patient Safety: Features a 4-point harness and a separate belt for legs, with single-hand release locks.
Extendable Handles: Lockable pull-out handles front and rear for carrying.
Robust Materials: Made from carbon fiber composite, anodized aluminum, stainless steel and plastics.

Compatibility

Technical data

Weight: 24 kg.
Dimensions: Minimum (LxWxH) 1970 x 565 x 500 mm in low position;
Maximum (LxWxH) 2350 x 565 x 1460 mm all extended.
Temperature Range: Operational and storage: -35°C to +40°C
Crash Test: Compliant with EN 1789, chapter 5.3 (10G at six axes).
Environmental Conditions: Meets relevant parts of MIL-STD-810 F.
Human Factors Engineering: Meets relevant parts of MIL-STD-1472 H.
Certification: MDR Class I.
